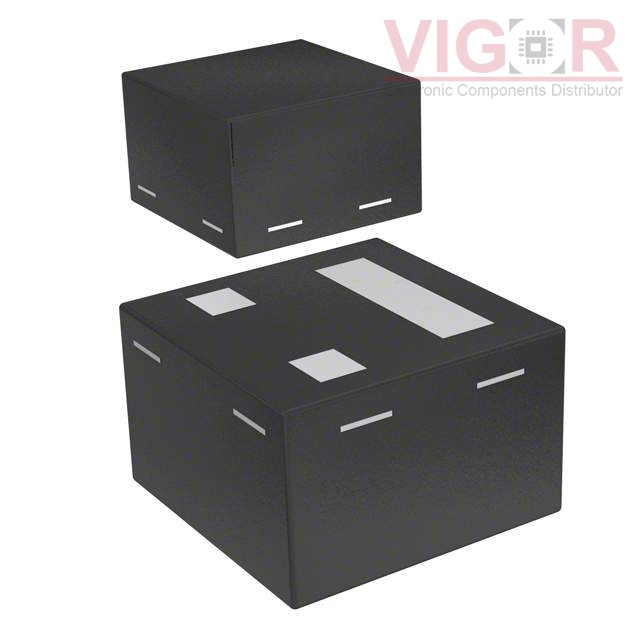

DMN2990UFZ-7B

Part No :: DMN2990UFZ-7B

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: MOSFET N-CH 20V 250MA 3DFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: DMN2990UFZ-7B PDF

Availability: 806700000 pieces

Current price of DMN2990UFZ-7B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DMN2990UFZ-7B Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	250mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.2V, 4.5V
Rds On (Max) @ Id, Vgs:	990mOhm @ 100mA, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	0.5 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	55.2 pF @ 16 V
FET Feature:	-
Power Dissipation (Max):	320mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	X2-DFN0606-3
Package / Case:	3-XFDFN

Please confirm the specifications of the products when ordering.
