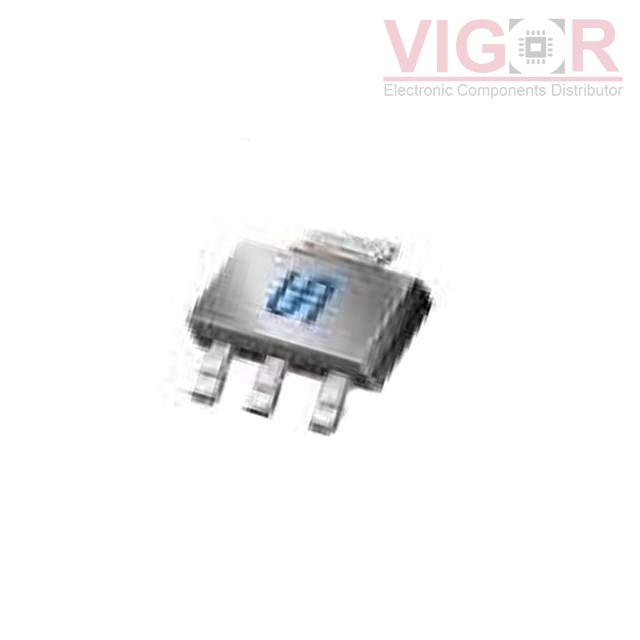

TSM950N10CW RPG

Part No :: TSM950N10CW RPG

Manufacturer: TSC (Taiwan Semiconductor)

Description: MOSFET N-CH 100V 6.5A SOT223

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TSM950N10CW RPG PDF

Availability: 1935 pieces

Current price of TSM950N10CW RPG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TSM950N10CW RPG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	6.5A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	95mOhm @ 5A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	9.3 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1480 pF @ 50 V
FET Feature:	-
Power Dissipation (Max):	9W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-223
Package / Case:	TO-261-4, TO-261AA

Please confirm the specifications of the products when ordering.
