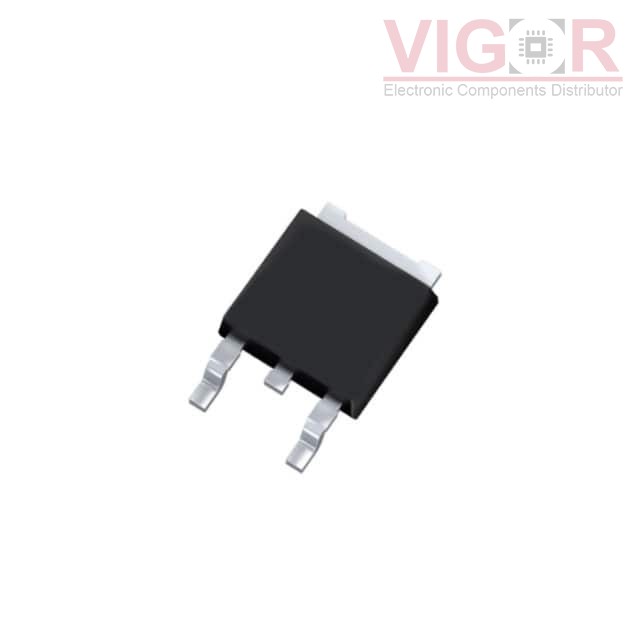

IPD60R180P7SE8228AUMA1

Part No :: IPD60R180P7SE8228AUMA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 600V 18A TO252-3

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IPD60R180P7SE8228AUMA1 PDF

Availability: 0 pieces

Current price of IPD60R180P7SE8228AUMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IPD60R180P7SE8228AUMA1 Specifications

Type	Description
Series:	CoolMOS™ P7
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	600 V
Current - Continuous Drain (Id) @ 25°C:	18A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	180mOhm @ 5.6A, 10V
Vgs(th) (Max) @ Id:	4V @ 280µA
Gate Charge (Qg) (Max) @ Vgs:	25 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1081 pF @ 400 V
FET Feature:	-
Power Dissipation (Max):	72W (Tc)
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-TO252-3
Package / Case:	TO-252-3, DPak (2 Leads + Tab), SC-63

Please confirm the specifications of the products when ordering.
