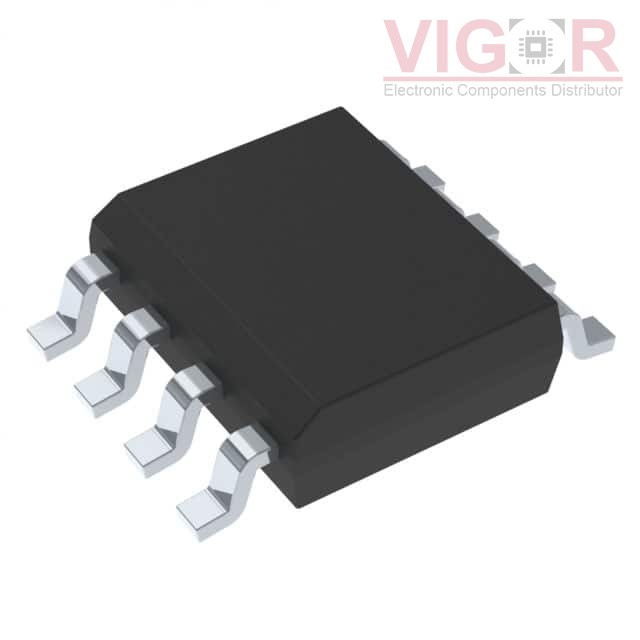

TSM4806CS RLG

Part No :: TSM4806CS RLG

Manufacturer: TSC (Taiwan Semiconductor)

Description: MOSFET N-CHANNEL 20V 28A 8SOP

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TSM4806CS RLG PDF

Availability: 1618 pieces

Current price of TSM4806CS RLG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TSM4806CS RLG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	28A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 4.5V
Rds On (Max) @ Id, Vgs:	20mOhm @ 20A, 4.5V
Vgs(th) (Max) @ Id:	1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	12.3 nC @ 4.5 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	961 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	2W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-SOP
Package / Case:	8-SOIC (0.154", 3.90mm Width)

Please confirm the specifications of the products when ordering.
