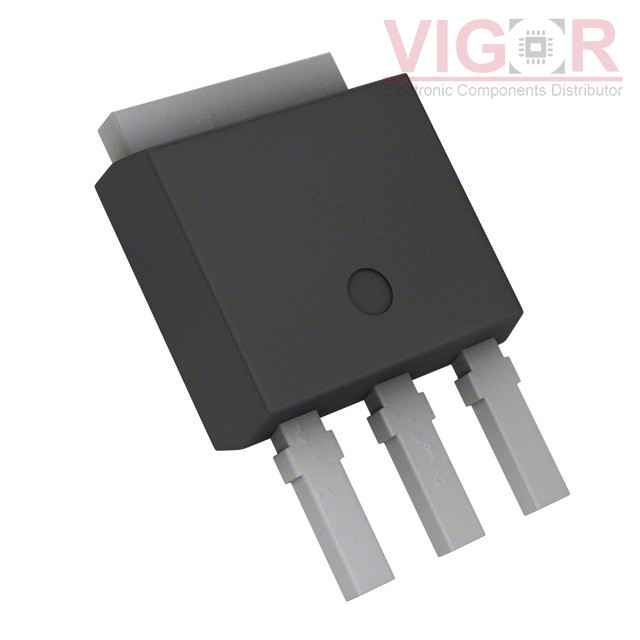

NTD3808N-35G

Part No :: NTD3808N-35G

Manufacturer: VIGOR

Description: MOSFET N-CH 16V 12A/76A IPAK

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: NTD3808N-35G PDF

Availability: 7050 pieces

Current price of NTD3808N-35G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTD3808N-35G Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	16 V
Current - Continuous Drain (Id) @ 25°C:	12A (Ta), 76A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	5.8mOhm @ 15A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	21 nC @ 4.5 V
Vgs (Max):	±16V
Input Capacitance (Ciss) (Max) @ Vds:	1.66 pF @ 12 V
FET Feature:	-
Power Dissipation (Max):	1.3W (Ta), 52W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	I-PAK
Package / Case:	TO-251-3 Stub Leads, IPak

Please confirm the specifications of the products when ordering.
