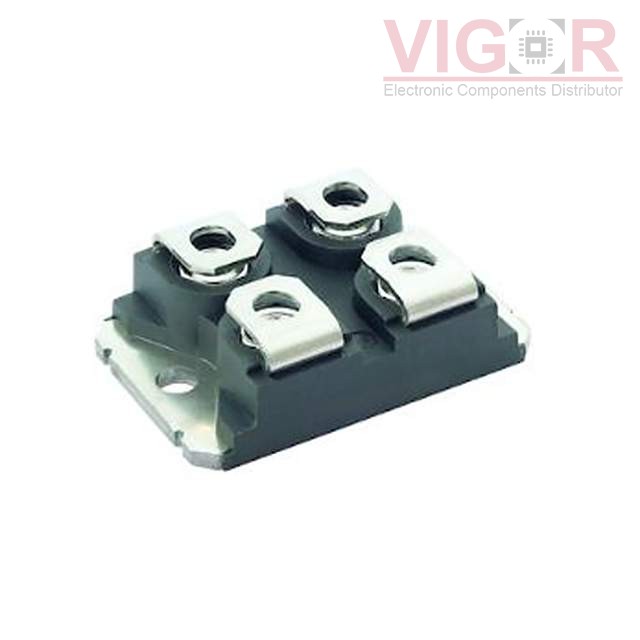

VS-FC270SA20

Part No :: VS-FC270SA20

Manufacturer: Vishay General Semiconductor – Diodes Division

Description: MOSFET N-CH 200V 287A SOT227

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: VS-FC270SA20 PDF

Availability: 420 pieces

Current price of VS-FC270SA20 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

VS-FC270SA20 Specifications

Type	Description
Series:	-
Package:	Bulk
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	200 V
Current - Continuous Drain (Id) @ 25°C:	287A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	4.7mOhm @ 200A, 10V
Vgs(th) (Max) @ Id:	4.3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	250 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	16500 pF @ 100 V
FET Feature:	-
Power Dissipation (Max):	937W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Chassis Mount
Supplier Device Package:	SOT-227
Package / Case:	SOT-227-4, miniBLOC
