NTLJS5D0N03CTAG

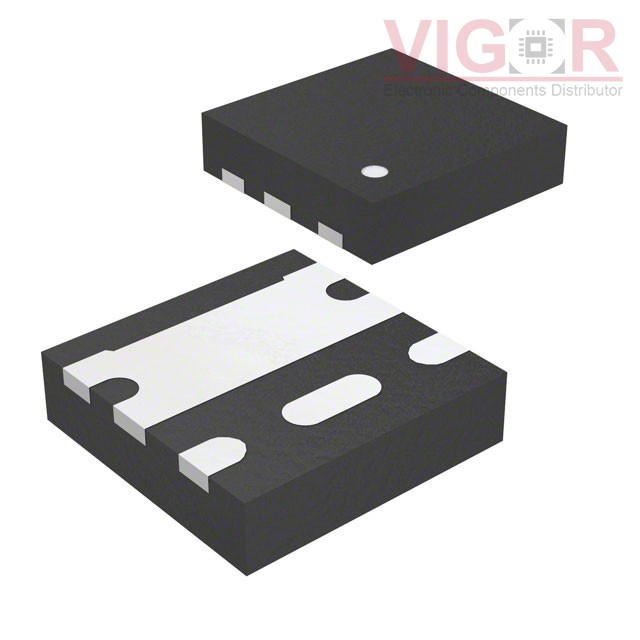

Image is for reference,
please contact us to get the real picture

Part No :: NTLJS5D0N03CTAG

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 30V 11.2A 6PQFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: NTLJS5D0N03CTAG PDF

Availability: 840 pieces

Unit Price: ~~$0.91000~~

Current price of NTLJS5D0N03CTAG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NTLJS5D0N03CTAG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	11.2A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	4.38mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	18 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1255 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	860mW (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-PQFN (2x2)
Package / Case:	6-PowerWDFN
