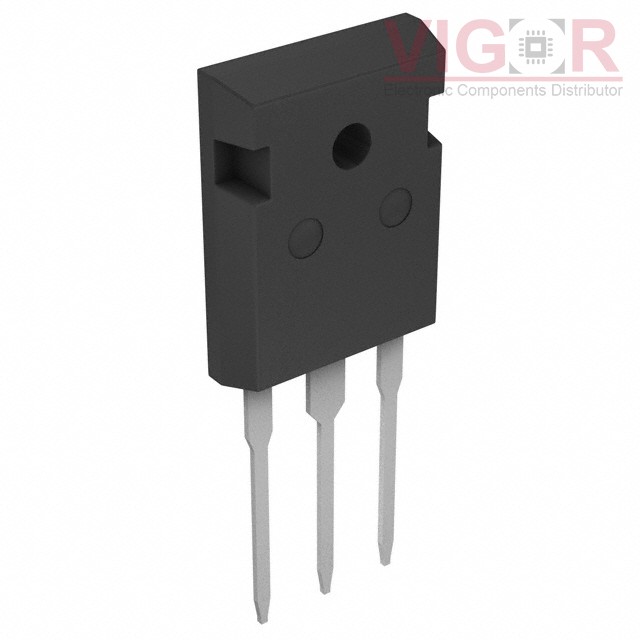

MSC040SMA120B

Part No :: MSC040SMA120B

Manufacturer: Roving Networks / Microchip Technology

VIGOR # :: 2904137

Description: SICFET N-CH 1200V 66A TO247-3

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: MSC040SMA120B PDF

Country of origin: -

Date code: -

MSC040SMA120B Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):	1200 V
Current - Continuous Drain (Id) @ 25°C:	66A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	20V
Rds On (Max) @ Id, Vgs:	50mOhm @ 40A, 20V
Vgs(th) (Max) @ Id:	2.7V @ 2mA
Gate Charge (Qg) (Max) @ Vgs:	137 nC @ 20 V
Vgs (Max):	+23V, -10V
Input Capacitance (Ciss) (Max) @ Vds:	1990 pF @ 1000 V
FET Feature:	-
Power Dissipation (Max):	323W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-247-3
Package / Case:	TO-247-3

Please confirm the specifications of the products when ordering.
MOQ means the minimum order quantity required to purchase each parts.
If you have special order instructions,please note it on the ordering pages.
The Pre-Shipment Inspection (PSI) will be applied.
You can email us to change the order details before shipment.
Orders cannot be canceled after shipping the packages.

TT in advance (bank transfer), Credit Card, PayPal can be chosen.
Cash transfer only. (Transfer with checks and bills are not accepted.)
Customer is responsible for paying all possible charges,including sales tax, VAT and customs charges,etc.
If you need the detailed invoice or tax ID,please email us.

FedEx, DHL, and UPS can be selected.
You can select whether to charge shipping fee by your shipping account or to charge by our side.
Please confirm with the logistics company in advance if you are in a remote area. (It may cost extra fees (35-50 USD) for delivery at those areas.)
The shopping cart will automatically calculate the shipping cost.
Delivery time: At the same day (Order deadline is 2pm, HK Time).
Delivery date: usually 2 to 7 working days.
It is unable to appoint a date of delivery.
Tracking number will be sent once your order has been shipped. (It may take up to 24 hours before carriers display the info.)

In Stock: 23

Shipped from

HK warehouse

Expected Shipping Date

Jan 30 - Feb 03 2026

Pricing(USD)

Quantity	Unit Price	Ext. Price
1	~~$21.14~~	~~$21.14~~

Current price of MSC040SMA120B is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@Vigorcomp.com
