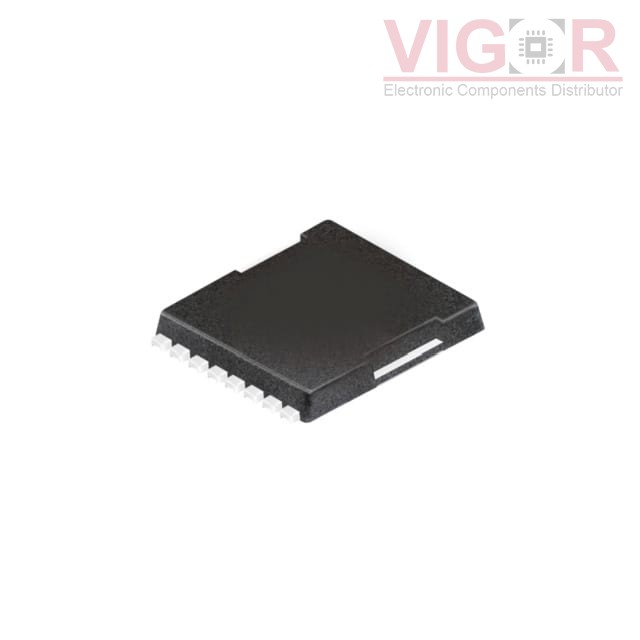

IPT60R090CFD7XTMA1

Part No :: IPT60R090CFD7XTMA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 600V 28A 8HSOF

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IPT60R090CFD7XTMA1 PDF

Availability: 1786 pieces

Current price of IPT60R090CFD7XTMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IPT60R090CFD7XTMA1 Specifications

Type	Description
Series:	CoolMOS™ CFD7
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	600 V
Current - Continuous Drain (Id) @ 25°C:	28A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	90mOhm @ 9.3A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 470µA
Gate Charge (Qg) (Max) @ Vgs:	42 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1752 pF @ 400 V
FET Feature:	-
Power Dissipation (Max):	160W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-HSOF-8-1
Package / Case:	8-PowerSFN
