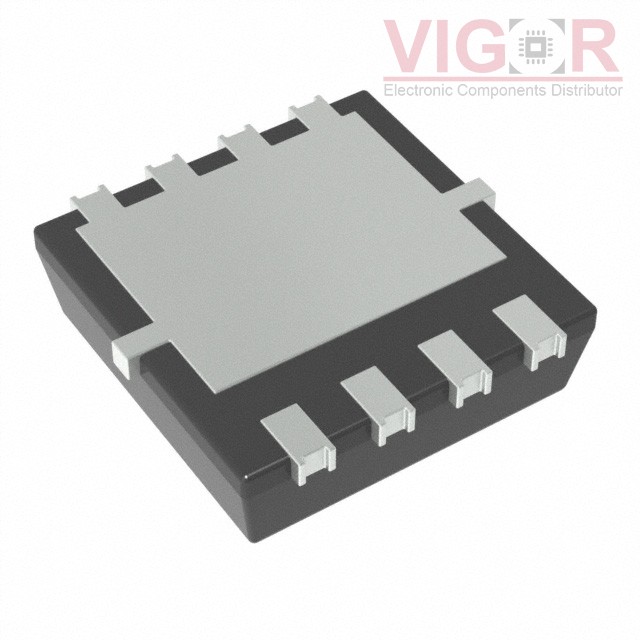

DMT47M2SFVWQ-13

Part No :: DMT47M2SFVWQ-13

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: MOSFET N-CH 40V PWRDI3333

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: DMT47M2SFVWQ-13 PDF

Availability: 0 pieces

Current price of DMT47M2SFVWQ-13 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DMT47M2SFVWQ-13 Specifications

Type	Description
Series:	Automotive, AEC-Q101
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	15.4A (Ta), 49.1A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	7.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	12.1 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	897 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	2.67W (Ta), 27.1W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PowerDI3333-8 (SWP) Type UX
Package / Case:	8-PowerVDFN
