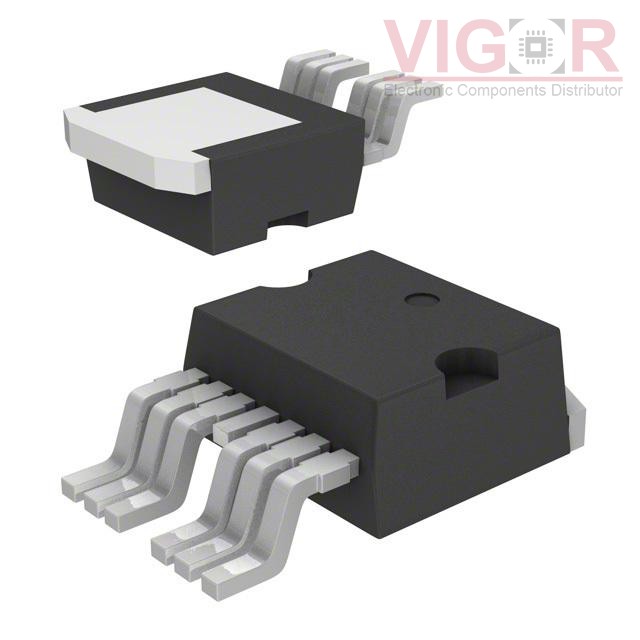

STH245N75F3-6

Part No :: STH245N75F3-6

Manufacturer: STMicroelectronics

Description: MOSFET N-CH 75V 180A H2PAK-6

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: STH245N75F3-6 PDF

Availability: 0 pieces

Current price of STH245N75F3-6 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

STH245N75F3-6 Specifications

Type	Description
Series:	Automotive, AEC-Q101, STripFET™ F3
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	75 V
Current - Continuous Drain (Id) @ 25°C:	180A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	3mOhm @ 90A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	87 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	6800 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	300W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	H2PAK-6
Package / Case:	TO-263-7, D²Pak (6 Leads + Tab)

Please confirm the specifications of the products when ordering.
