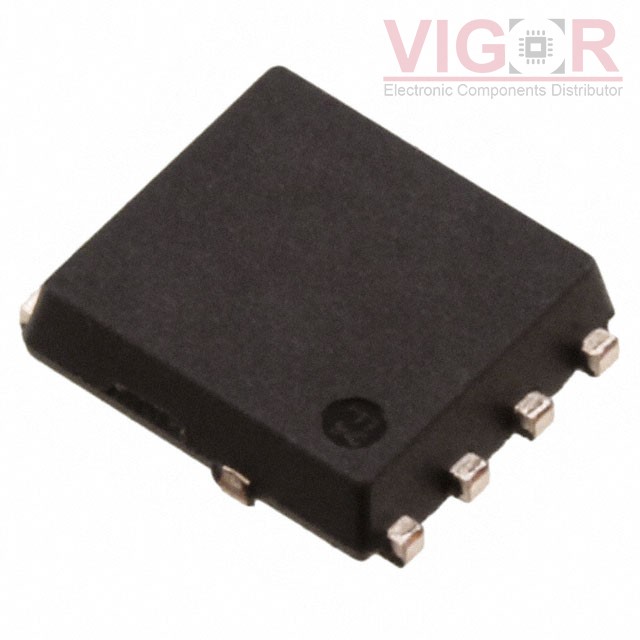

NP50P03YDG-E1-AY

Part No :: NP50P03YDG-E1-AY

Manufacturer: Renesas Electronics America

Description: MOSFET P-CH 30V 50A 8HSON

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: NP50P03YDG-E1-AY PDF

Availability: 0 pieces

Current price of NP50P03YDG-E1-AY is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NP50P03YDG-E1-AY Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	50A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	5V, 10V
Rds On (Max) @ Id, Vgs:	8.4mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	96 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	3500 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	1W (Ta), 102W (Tc)
Operating Temperature:	175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-HSON
Package / Case:	8-SMD, Flat Lead Exposed Pad
