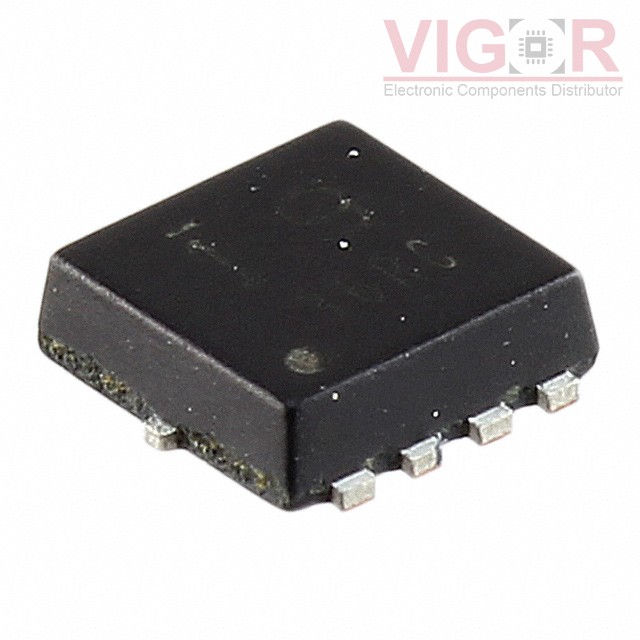

SK8403160L

Part No :: SK8403160L

Manufacturer: Panasonic

Description: MOSFET N-CH 30V 18A 8HSSO

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SK8403160L PDF

Availability: 2994 pieces

Current price of SK8403160L is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SK8403160L Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	18A (Ta), 70A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	3.3mOhm @ 14.5A, 10V
Vgs(th) (Max) @ Id:	3V @ 3.35mA
Gate Charge (Qg) (Max) @ Vgs:	22 nC @ 4.5 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	3920 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	2W (Ta), 28W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	HSSO8-F1-B
Package / Case:	8-PowerSMD, Flat Leads
