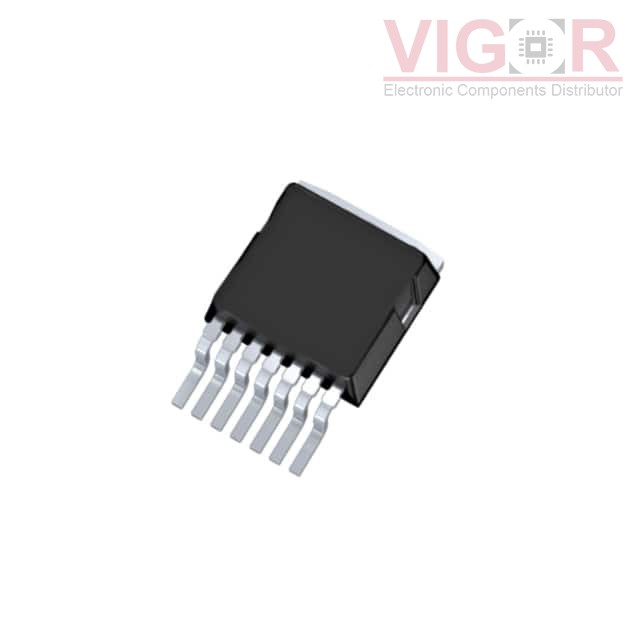

IMBG120R140M1HXTMA1

Part No :: IMBG120R140M1HXTMA1

Manufacturer: IR (Infineon Technologies)

Description: TRANS SJT N-CH 1.2KV 18A TO263

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IMBG120R140M1HXTMA1 PDF

Availability: 932 pieces

Current price of IMBG120R140M1HXTMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IMBG120R140M1HXTMA1 Specifications

Type	Description
Series:	CoolSiC™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	SiC (Silicon Carbide Junction Transistor)
Drain to Source Voltage (Vdss):	1.2 kV
Current - Continuous Drain (Id) @ 25°C:	18A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	189mOhm @ 6A, 18V
Vgs(th) (Max) @ Id:	5.7V @ 2.5mA
Gate Charge (Qg) (Max) @ Vgs:	13.4 nC @ 18 V
Vgs (Max):	+18V, -15V
Input Capacitance (Ciss) (Max) @ Vds:	491 pF @ 800 V
FET Feature:	Standard
Power Dissipation (Max):	107W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-TO263-7-12
Package / Case:	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
