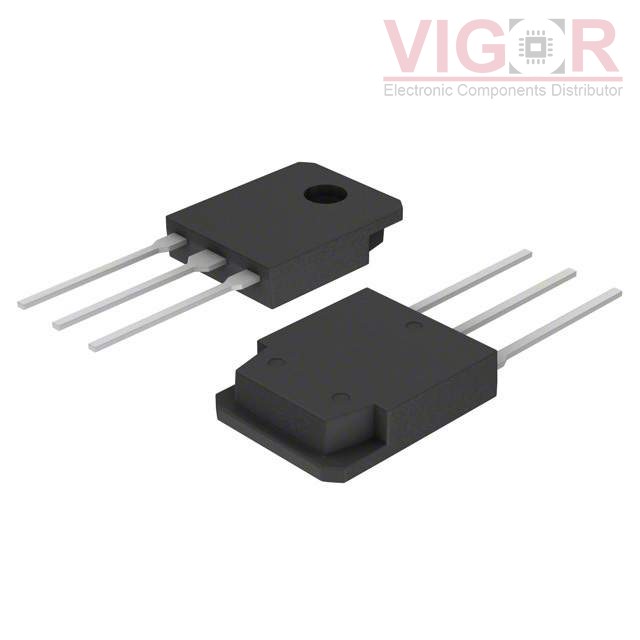

IXFH76N15T2

Part No :: IXFH76N15T2

Manufacturer: Wickmann / Littelfuse

Description: MOSFET N-CH 150V 76A TO247

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IXFH76N15T2 PDF

Availability: 1260 pieces

Current price of IXFH76N15T2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IXFH76N15T2 Specifications

Type	Description
Series:	HiPerFET™, TrenchT2™
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	150 V
Current - Continuous Drain (Id) @ 25°C:	76A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	22mOhm @ 38A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	97 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	5800 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	350W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-247
Package / Case:	TO-247-3
