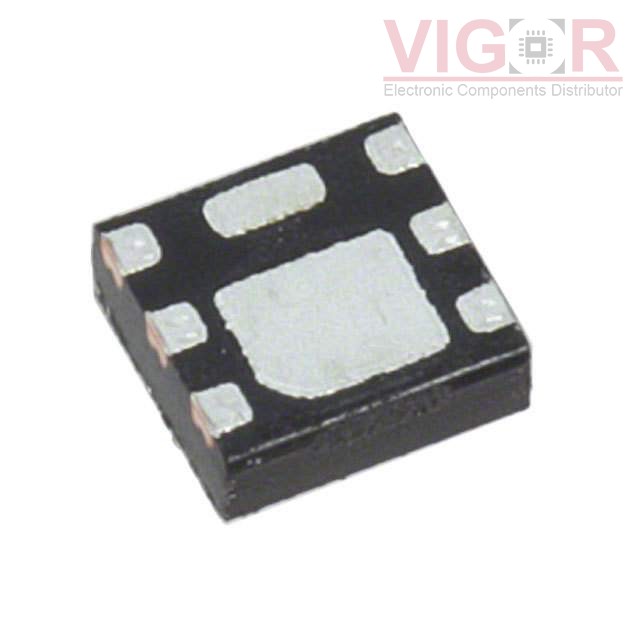

SSM6K504NU,LF

Part No :: SSM6K504NU,LF

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: MOSFET N-CH 30V 9A 6UDFNB

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SSM6K504NU,LF PDF

Availability: 2637 pieces

Current price of SSM6K504NU,LF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SSM6K504NU,LF Specifications

Type	Description
Series:	U-MOSVII
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	9A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	19.5mOhm @ 4A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 100µA
Gate Charge (Qg) (Max) @ Vgs:	4.8 nC @ 4.5 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	620 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	1.25W (Ta)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-UDFNB (2x2)
Package / Case:	6-WDFN Exposed Pad
