CSD25402Q3AT

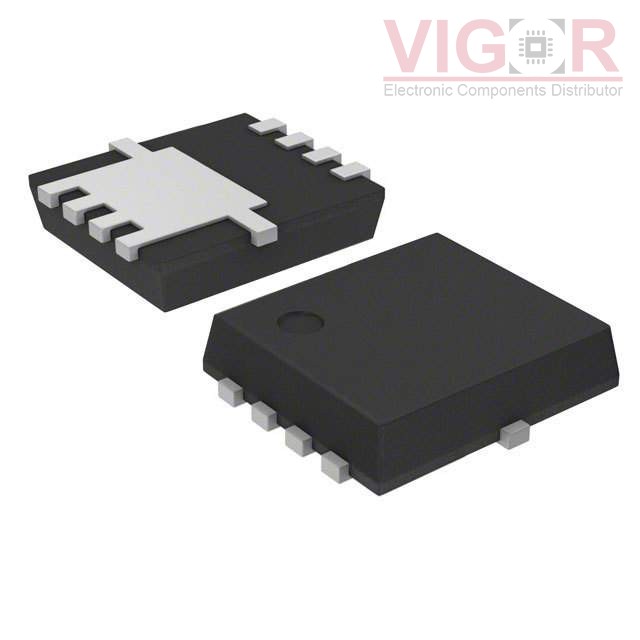

Part No :: CSD25402Q3AT

Manufacturer: Texas Instruments

Description: MOSFET P-CH 20V 15A/76A 8VSON

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: CSD25402Q3AT PDF

Availability: 3042 pieces

Current price of CSD25402Q3AT is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CSD25402Q3AT Specifications

Type	Description
Series:	NexFET™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	15A (Ta), 76A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 4.5V
Rds On (Max) @ Id, Vgs:	8.9mOhm @ 10A, 4.5V
Vgs(th) (Max) @ Id:	1.15V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	9.7 nC @ 4.5 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	1790 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	2.8W (Ta), 69W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-VSONP (3x3.15)
Package / Case:	8-PowerVDFN
