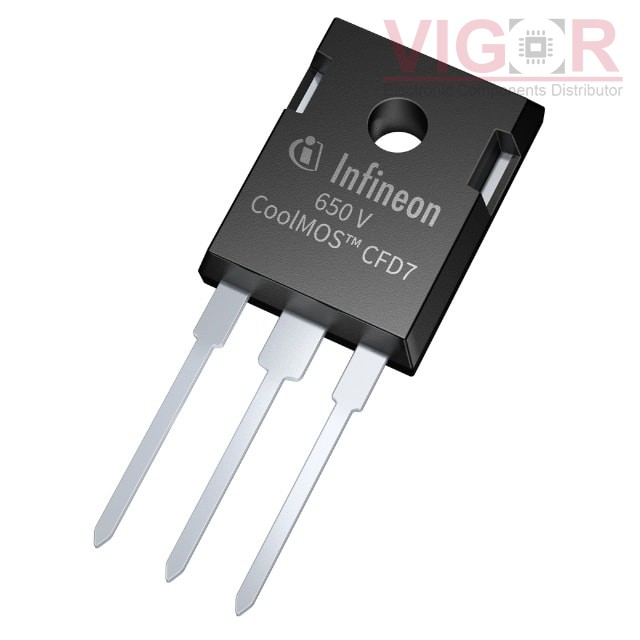

IPW65R029CFD7XKSA1

Part No :: IPW65R029CFD7XKSA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 650V 69A TO247-3

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IPW65R029CFD7XKSA1 PDF

Availability: 0 pieces

Current price of IPW65R029CFD7XKSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IPW65R029CFD7XKSA1 Specifications

Type	Description
Series:	CoolMOS™
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	650 V
Current - Continuous Drain (Id) @ 25°C:	69A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	29mOhm @ 35.8A, 10V
Vgs(th) (Max) @ Id:	4.5V @ 1.79mA
Gate Charge (Qg) (Max) @ Vgs:	145 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	7149 pF @ 400 V
FET Feature:	-
Power Dissipation (Max):	305W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	PG-TO247-3
Package / Case:	TO-247-3
