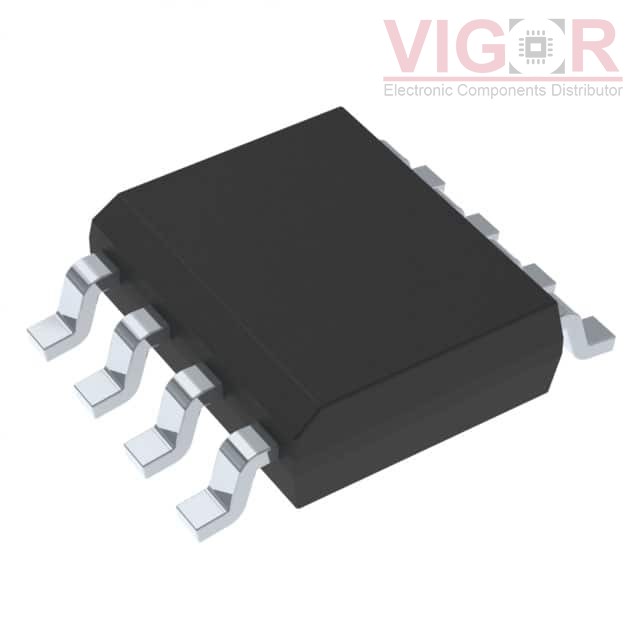

TSM150P04LCS RLG

Part No :: TSM150P04LCS RLG

Manufacturer: TSC (Taiwan Semiconductor)

Description: MOSFET P-CHANNEL 40V 22A 8SOP

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TSM150P04LCS RLG PDF

Availability: 9418 pieces

Current price of TSM150P04LCS RLG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TSM150P04LCS RLG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	22A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	15mOhm @ 9A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	48 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2783 pF @ 20 V
FET Feature:	-
Power Dissipation (Max):	12.5W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-SOP
Package / Case:	8-SOIC (0.154", 3.90mm Width)
