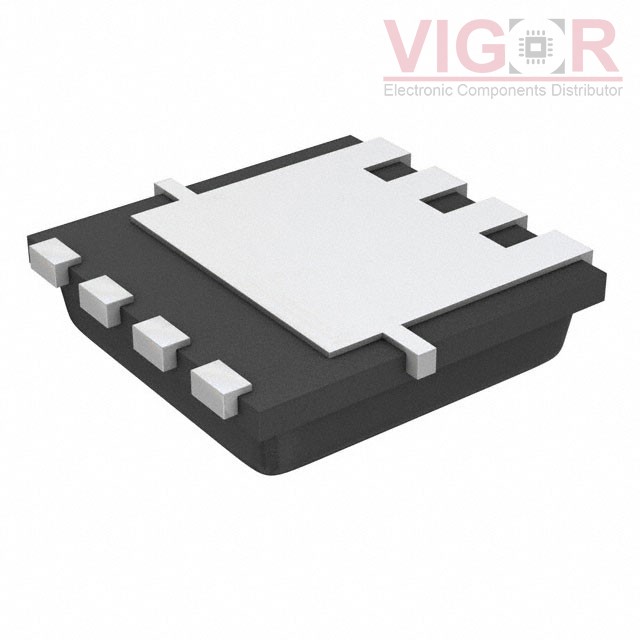

DMT6015LFV-7

Part No :: DMT6015LFV-7

Manufacturer: Zetex Semiconductors (Diodes Inc.)

Description: MOSFET N-CH 60V PWRDI3333

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: DMT6015LFV-7 PDF

Availability: 220000 pieces

Current price of DMT6015LFV-7 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

DMT6015LFV-7 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	9.5A (Ta), 35A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	16mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	18.9 nC @ 10 V
Vgs (Max):	±16V
Input Capacitance (Ciss) (Max) @ Vds:	1103 pF @ 30 V
FET Feature:	-
Power Dissipation (Max):	2.2W (Ta), 30W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PowerDI3333-8 (Type UX)
Package / Case:	8-PowerVDFN
