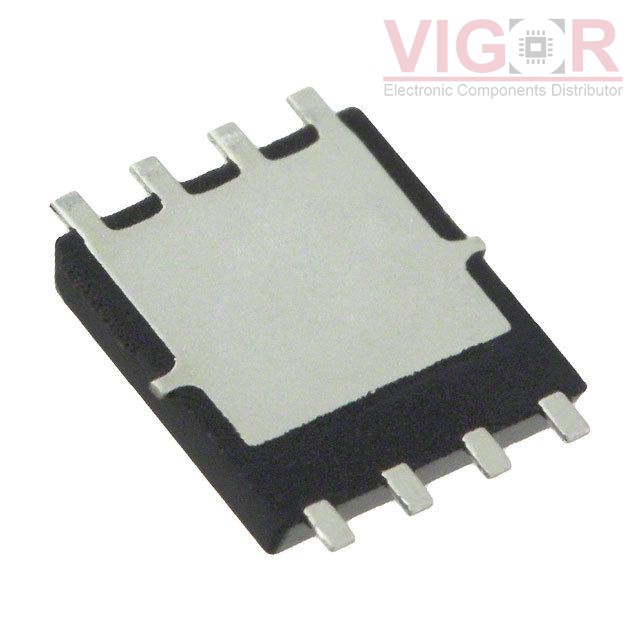

TPH7R506NH,L1Q

Part No :: TPH7R506NH,L1Q

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: MOSFET N-CH 60V 22A 8SOP

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TPH7R506NH,L1Q PDF

Availability: 5628 pieces

Current price of TPH7R506NH,L1Q is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TPH7R506NH,L1Q Specifications

Type	Description
Series:	U-MOSVIII-H
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	22A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	7.5mOhm @ 11A, 10V
Vgs(th) (Max) @ Id:	4V @ 300µA
Gate Charge (Qg) (Max) @ Vgs:	31 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2320 pF @ 30 V
FET Feature:	-
Power Dissipation (Max):	1.6W (Ta), 45W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-SOP Advance (5x5)
Package / Case:	8-PowerVDFN
