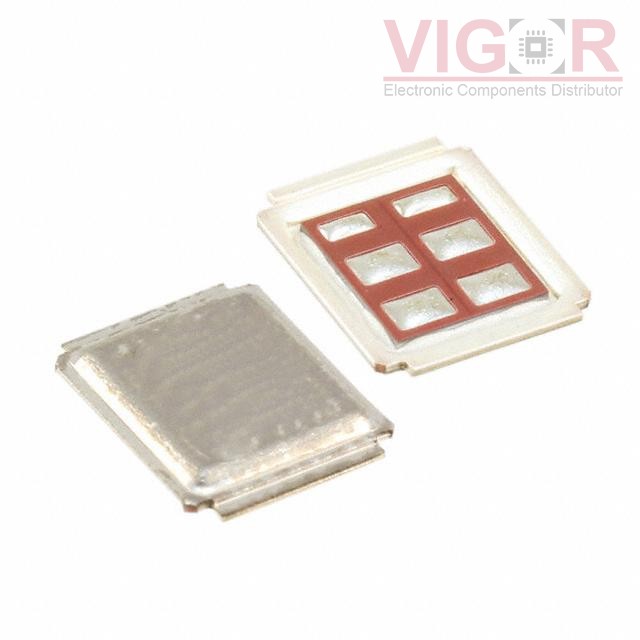

IRL7486MTRPBF

Part No :: IRL7486MTRPBF

Manufacturer: VIGOR

Description: IRL7486M - 12V-300V N-CHANNEL PO

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IRL7486MTRPBF PDF

Availability: 8054 pieces

Current price of IRL7486MTRPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IRL7486MTRPBF Specifications

Type	Description
Series:	HEXFET®, StrongIRFET™
Package:	Bulk
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	209A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	1.25mOhm @ 123A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 150µA
Gate Charge (Qg) (Max) @ Vgs:	111 nC @ 4.5 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	6.904 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	104W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	DirectFET™ Isometric ME
Package / Case:	DirectFET™ Isometric ME

Please confirm the specifications of the products when ordering.
