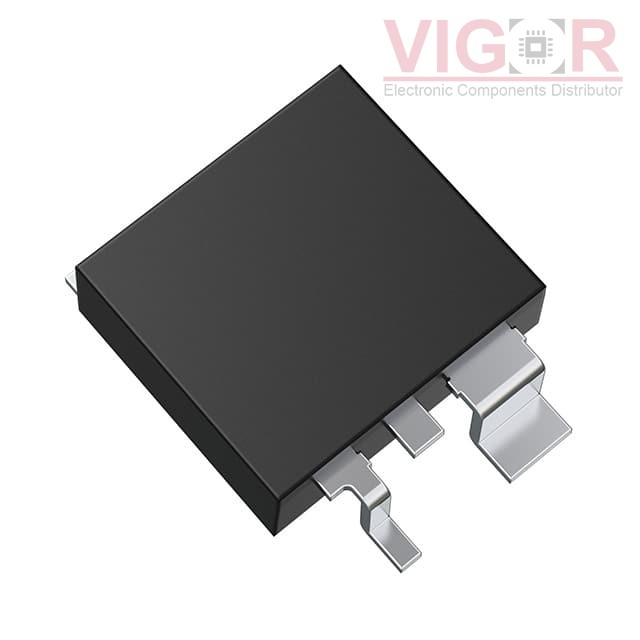

XPW6R30ANB,L1XHQ

Part No :: XPW6R30ANB,L1XHQ

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: MOSFET N-CH 100V 45A 8DSOP

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: XPW6R30ANB,L1XHQ PDF

Availability: 9978 pieces

Current price of XPW6R30ANB,L1XHQ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

XPW6R30ANB,L1XHQ Specifications

Type	Description
Series:	U-MOSVIII-H
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	45A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	6V, 10V
Rds On (Max) @ Id, Vgs:	6.3mOhm @ 22.5A, 10V
Vgs(th) (Max) @ Id:	3.5V @ 500µA
Gate Charge (Qg) (Max) @ Vgs:	52 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	3240 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	960mW (Ta), 132W (Tc)
Operating Temperature:	175°C
Mounting Type:	Surface Mount
Supplier Device Package:	8-DSOP Advance
Package / Case:	8-PowerVDFN
