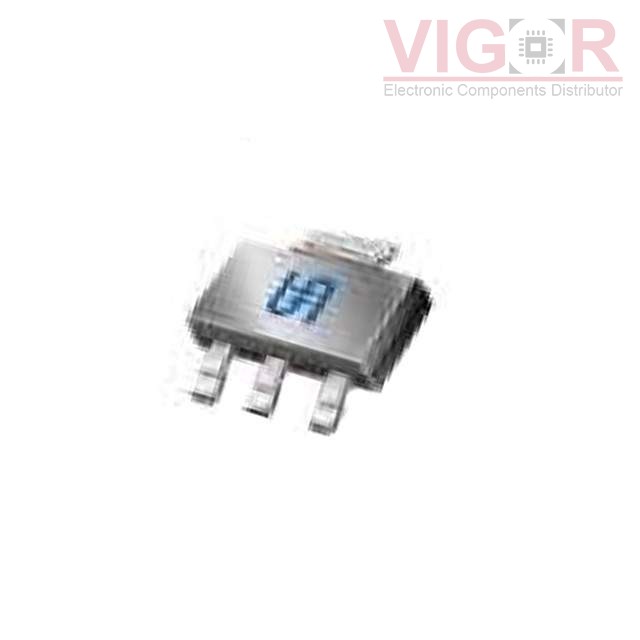

TSM2N60SCW RPG

Part No :: TSM2N60SCW RPG

Manufacturer: TSC (Taiwan Semiconductor)

Description: MOSFET N-CH 600V 600MA SOT223

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TSM2N60SCW RPG PDF

Availability: 504 pieces

Current price of TSM2N60SCW RPG is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TSM2N60SCW RPG Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	600 V
Current - Continuous Drain (Id) @ 25°C:	600mA (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	5Ohm @ 600mA, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	13 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	435 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	2.5W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-223
Package / Case:	TO-261-4, TO-261AA

Please confirm the specifications of the products when ordering.
