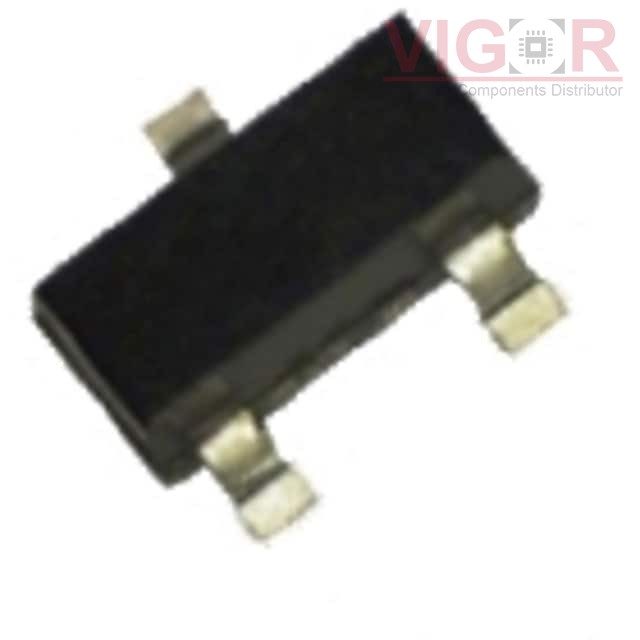

RM2304

Part No :: RM2304

Manufacturer: Rectron USA

Description: MOSFET N-CHANNEL 30V 3.6A SOT23

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: RM2304 PDF

Availability: 0 pieces

Current price of RM2304 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RM2304 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	3.6A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	58mOhm @ 3.6A, 10V
Vgs(th) (Max) @ Id:	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	230 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	1.7W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	SOT-23
Package / Case:	TO-236-3, SC-59, SOT-23-3
