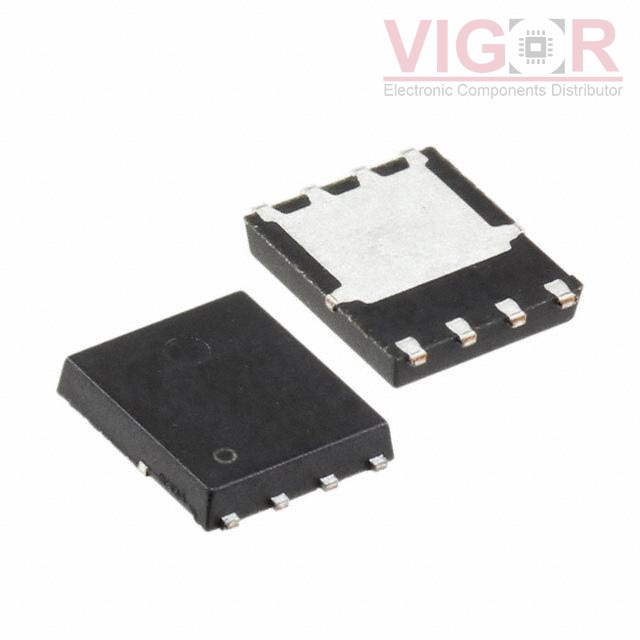

FDWS86068-F085

Part No :: FDWS86068-F085

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 100V 80A 8DFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FDWS86068-F085 PDF

Availability: 0 pieces

Current price of FDWS86068-F085 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDWS86068-F085 Specifications

Type	Description
Series:	Automotive, AEC-Q101, PowerTrench®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	80A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	6.4mOhm @ 80A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	43 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2220 pF @ 50 V
FET Feature:	-
Power Dissipation (Max):	214W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-DFN (5.1x6.3)
Package / Case:	8-PowerTDFN
