AON7280

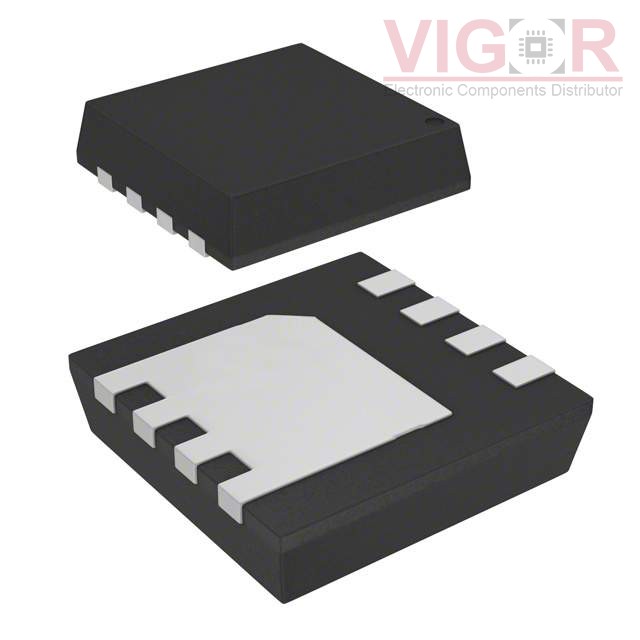

Image is for reference,
please contact us to get the real picture

Part No :: AON7280

Manufacturer: Alpha and Omega Semiconductor, Inc.

Description: MOSFET N-CH 80V 20A/50A 8DFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: AON7280 PDF

Availability: 0 pieces

Unit Price: ~~$1.80000~~

Current price of AON7280 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

AON7280 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	80 V
Current - Continuous Drain (Id) @ 25°C:	20A (Ta), 50A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	6V, 10V
Rds On (Max) @ Id, Vgs:	8.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:	3.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	38 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1871 pF @ 40 V
FET Feature:	-
Power Dissipation (Max):	6.3W (Ta), 83W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-DFN-EP (3.3x3.3)
Package / Case:	8-PowerWDFN

Please confirm the specifications of the products when ordering.
