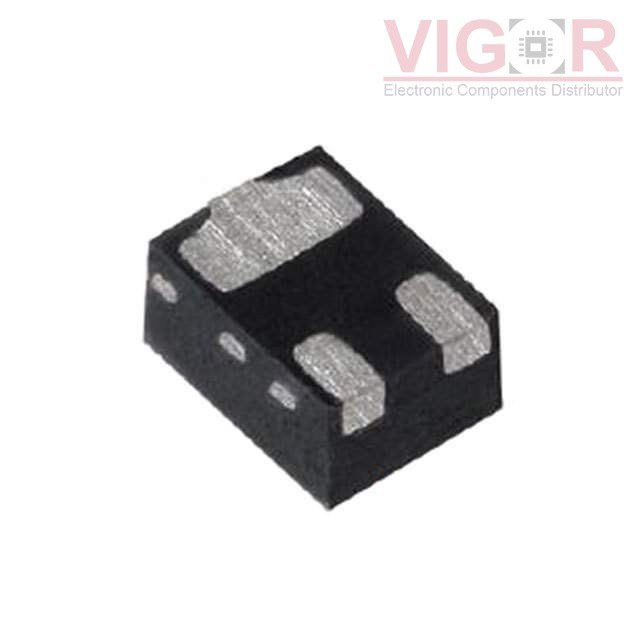

SIUD402ED-T1-GE3

Part No :: SIUD402ED-T1-GE3

Manufacturer: Vishay / Siliconix

Description: MOSFET N-CH 20V 1A PPAK 0806

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SIUD402ED-T1-GE3 PDF

Availability: 0 pieces

Current price of SIUD402ED-T1-GE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SIUD402ED-T1-GE3 Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	1A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.5V, 4.5V
Rds On (Max) @ Id, Vgs:	730mOhm @ 200mA, 4.5V
Vgs(th) (Max) @ Id:	900mV @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	1.2 nC @ 8 V
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	16 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	1.25W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PowerPAK® 0806
Package / Case:	PowerPAK® 0806

Please confirm the specifications of the products when ordering.
