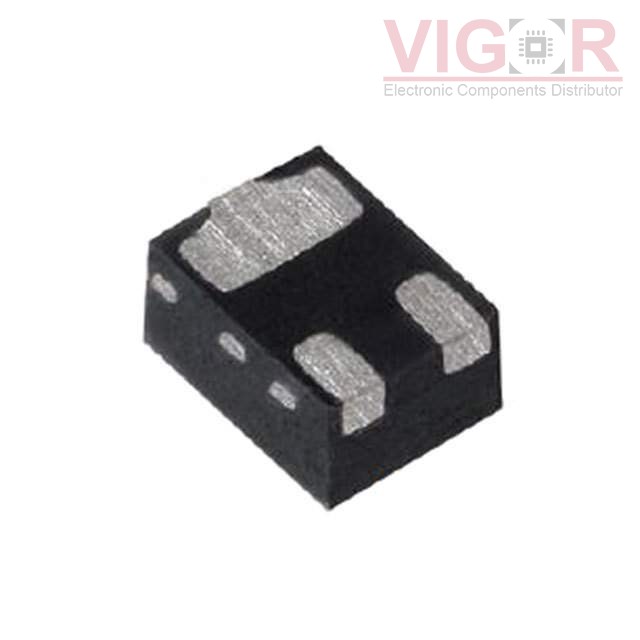

SIUD401ED-T1-GE3

Part No :: SIUD401ED-T1-GE3

Manufacturer: Vishay / Siliconix

Description: MOSFET P-CH 30V 500MA PPAK 0806

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SIUD401ED-T1-GE3 PDF

Availability: 5065 pieces

Current price of SIUD401ED-T1-GE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SIUD401ED-T1-GE3 Specifications

Type	Description
Series:	TrenchFET® Gen III
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	500mA (Ta)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 10V
Rds On (Max) @ Id, Vgs:	1.573Ohm @ 200mA, 10V
Vgs(th) (Max) @ Id:	1.4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	2 nC @ 10 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	33 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	1.25W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PowerPAK® 0806
Package / Case:	PowerPAK® 0806
