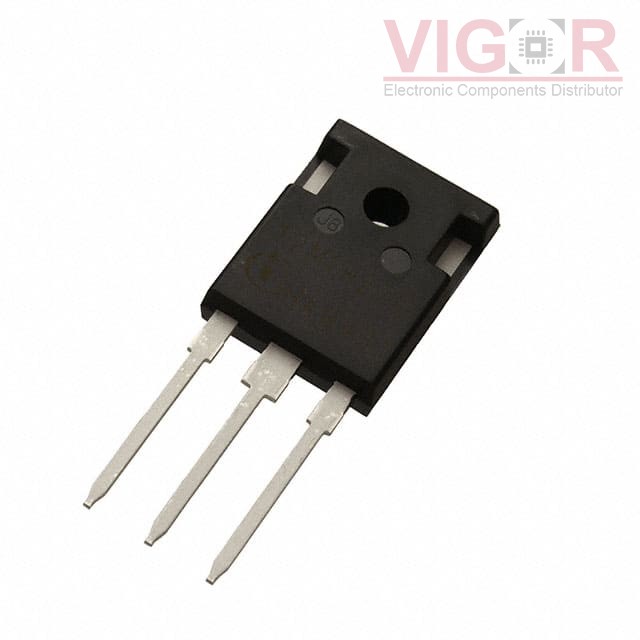

IMW120R030M1HXKSA1

Part No :: IMW120R030M1HXKSA1

Manufacturer: IR (Infineon Technologies)

Description: SICFET N-CH 1.2KV 56A TO247-3

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IMW120R030M1HXKSA1 PDF

Availability: 668 pieces

Current price of IMW120R030M1HXKSA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IMW120R030M1HXKSA1 Specifications

Type	Description
Series:	CoolSiC™
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):	1.2 kV
Current - Continuous Drain (Id) @ 25°C:	56A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	15V, 18V
Rds On (Max) @ Id, Vgs:	40mOhm @ 25A, 18V
Vgs(th) (Max) @ Id:	5.7V @ 10mA
Gate Charge (Qg) (Max) @ Vgs:	63 nC @ 18 V
Vgs (Max):	+23V, -7V
Input Capacitance (Ciss) (Max) @ Vds:	2.12 nF @ 800 V
FET Feature:	-
Power Dissipation (Max):	227W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	PG-TO247-3-41
Package / Case:	TO-247-3
