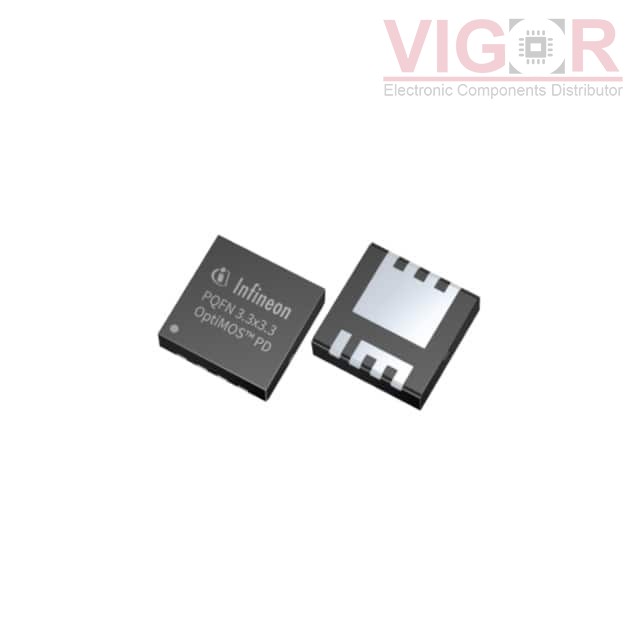

BSZ0703LSATMA1

Part No :: BSZ0703LSATMA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 60V 40A TSDSON

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: BSZ0703LSATMA1 PDF

Availability: 4900 pieces

Current price of BSZ0703LSATMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

BSZ0703LSATMA1 Specifications

Type	Description
Series:	OptiMOS™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	40A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	6.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:	2.3V @ 20µA
Gate Charge (Qg) (Max) @ Vgs:	13 nC @ 4.5 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1800 pF @ 30 V
FET Feature:	Standard
Power Dissipation (Max):	46W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-TSDSON-8-26
Package / Case:	8-PowerTDFN
