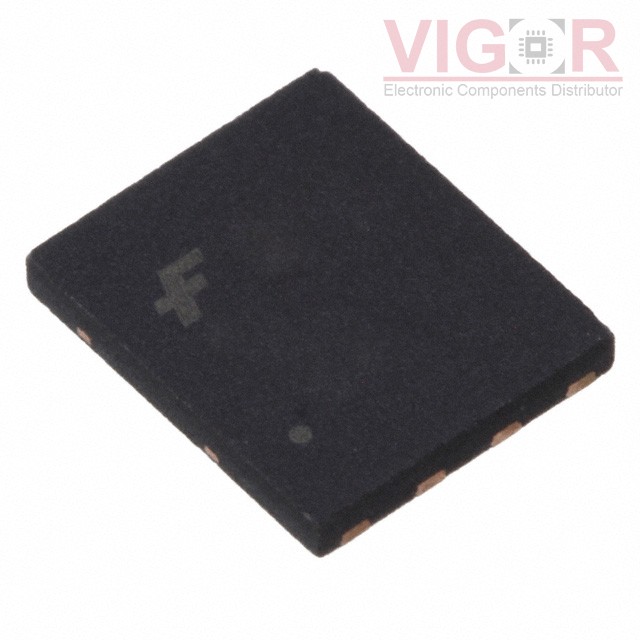

FDMS3572

Part No :: FDMS3572

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 80V 8.8A/22A 8MLP

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FDMS3572 PDF

Availability: 12257 pieces

Unit Price: ~~$2.52000~~

Current price of FDMS3572 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMS3572 Specifications

Type	Description
Series:	UltraFET™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	80 V
Current - Continuous Drain (Id) @ 25°C:	8.8A (Ta), 22A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	6V, 10V
Rds On (Max) @ Id, Vgs:	16.5mOhm @ 8.8A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	40 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2490 pF @ 40 V
FET Feature:	-
Power Dissipation (Max):	2.5W (Ta), 78W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-MLP (5x6), Power56
Package / Case:	8-PowerWDFN
