FDMA420NZ

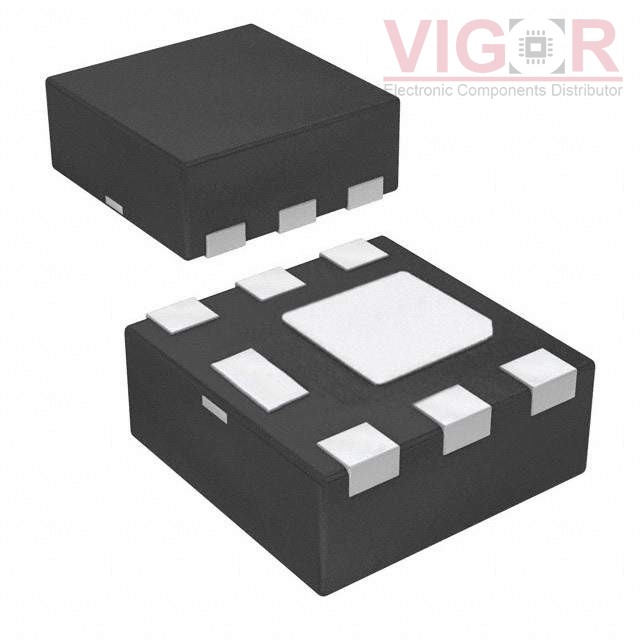

Image is for reference,
please contact us to get the real picture

Part No :: FDMA420NZ

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 20V 5.7A 6MICROFET

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FDMA420NZ PDF

Availability: 1984 pieces

Unit Price: ~~$0.67000~~

Current price of FDMA420NZ is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMA420NZ Specifications

Type	Description
Series:	PowerTrench®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	5.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V
Rds On (Max) @ Id, Vgs:	30mOhm @ 5.7A, 4.5V
Vgs(th) (Max) @ Id:	1.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	12 nC @ 4.5 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	935 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	2.4W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-MicroFET (2x2)
Package / Case:	6-WDFN Exposed Pad

Please confirm the specifications of the products when ordering.
