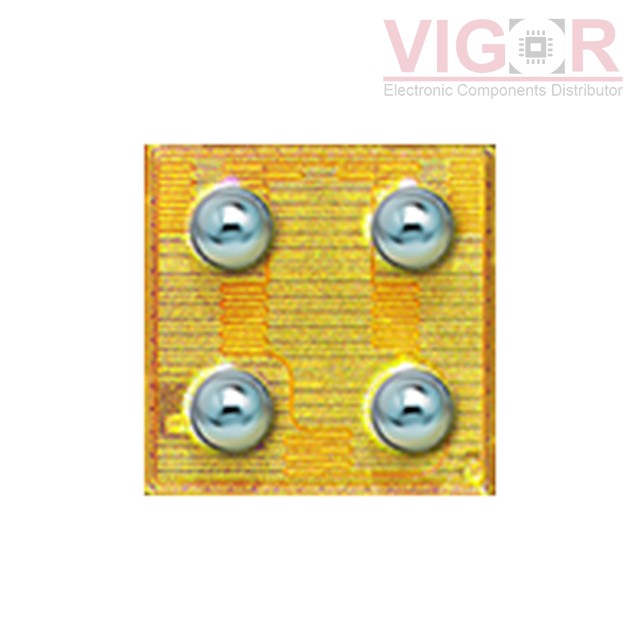

EPC2203

Part No :: EPC2203

Manufacturer: EPC

Description: GANFET N-CH 80V 1.7A DIE

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: EPC2203 PDF

Availability: 403 pieces

Current price of EPC2203 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

EPC2203 Specifications

Type	Description
Series:	Automotive, AEC-Q101, eGaN®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	GaNFET (Gallium Nitride)
Drain to Source Voltage (Vdss):	80 V
Current - Continuous Drain (Id) @ 25°C:	1.7A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	5V
Rds On (Max) @ Id, Vgs:	80mOhm @ 1A, 5V
Vgs(th) (Max) @ Id:	2.5V @ 600µA
Gate Charge (Qg) (Max) @ Vgs:	0.83 nC @ 5 V
Vgs (Max):	+5.75V, -4V
Input Capacitance (Ciss) (Max) @ Vds:	88 pF @ 50 V
FET Feature:	-
Power Dissipation (Max):	-
Operating Temperature:	-40°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	Die
Package / Case:	Die
