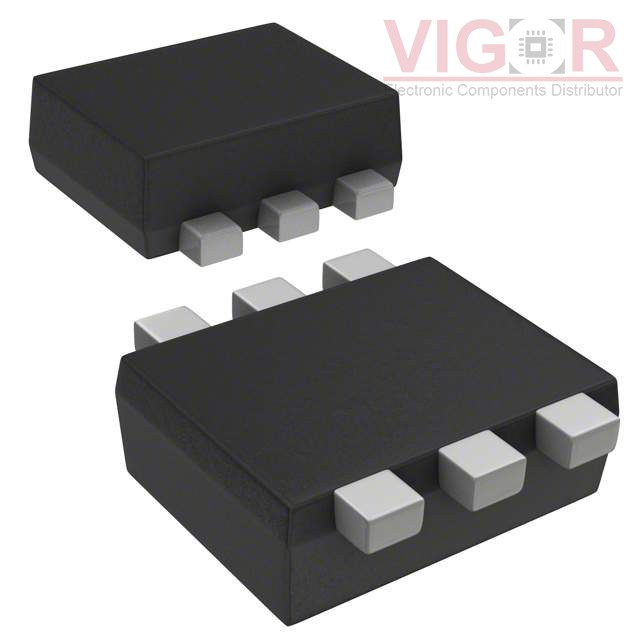

SSM6J206FE(TE85L,F

Part No :: SSM6J206FE(TE85L,F

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: MOSFET P-CH 20V 2A ES6

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SSM6J206FE(TE85L,F PDF

Availability: 6186 pieces

Current price of SSM6J206FE(TE85L,F is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SSM6J206FE(TE85L,F Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	2A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 4V
Rds On (Max) @ Id, Vgs:	130mOhm @ 1A, 4V
Vgs(th) (Max) @ Id:	1V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	-
Vgs (Max):	±8V
Input Capacitance (Ciss) (Max) @ Vds:	335 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	500mW (Ta)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	ES6 (1.6x1.6)
Package / Case:	SOT-563, SOT-666

Please confirm the specifications of the products when ordering.
