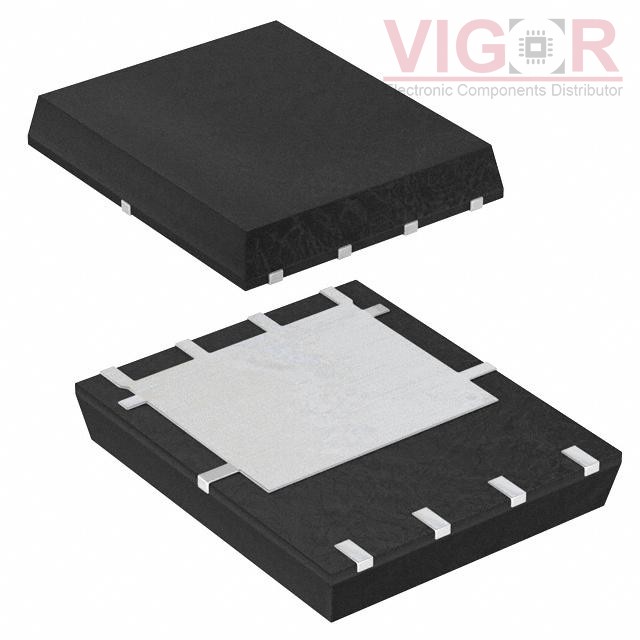

RS1E320GNTB

Part No :: RS1E320GNTB

Manufacturer: ROHM Semiconductor

Description: MOSFET N-CH 30V 32A 8HSOP

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: RS1E320GNTB PDF

Availability: 2350 pieces

Current price of RS1E320GNTB is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

RS1E320GNTB Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Not For New Designs
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	30 V
Current - Continuous Drain (Id) @ 25°C:	32A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	1.9mOhm @ 32A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	42.8 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2850 pF @ 15 V
FET Feature:	-
Power Dissipation (Max):	3W (Ta), 34.6W (Tc)
Operating Temperature:	150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-HSOP
Package / Case:	8-PowerTDFN
