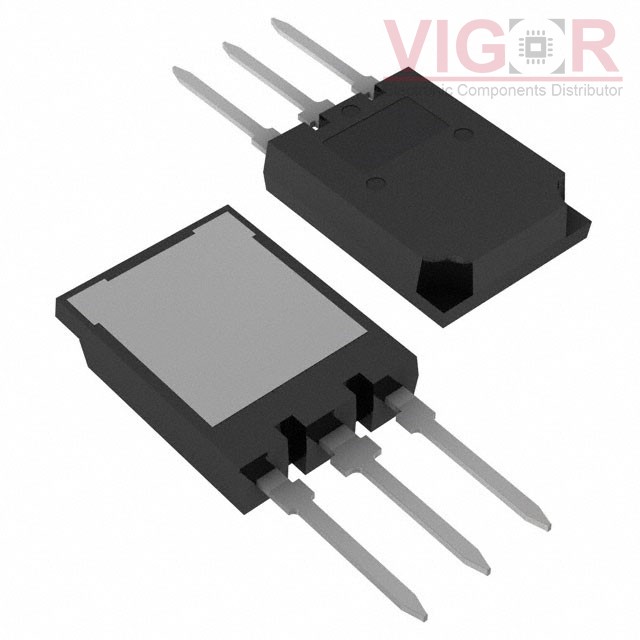

SIHS20N50C-E3

Part No :: SIHS20N50C-E3

Manufacturer: Vishay / Siliconix

Description: MOSFET N-CH 500V 20A SUPER247

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SIHS20N50C-E3 PDF

Availability: 0 pieces

Current price of SIHS20N50C-E3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SIHS20N50C-E3 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	500 V
Current - Continuous Drain (Id) @ 25°C:	20A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	270mOhm @ 10A, 10V
Vgs(th) (Max) @ Id:	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	76 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	2942 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	250mW (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	SUPER-247™ (TO-274AA)
Package / Case:	TO-274AA
