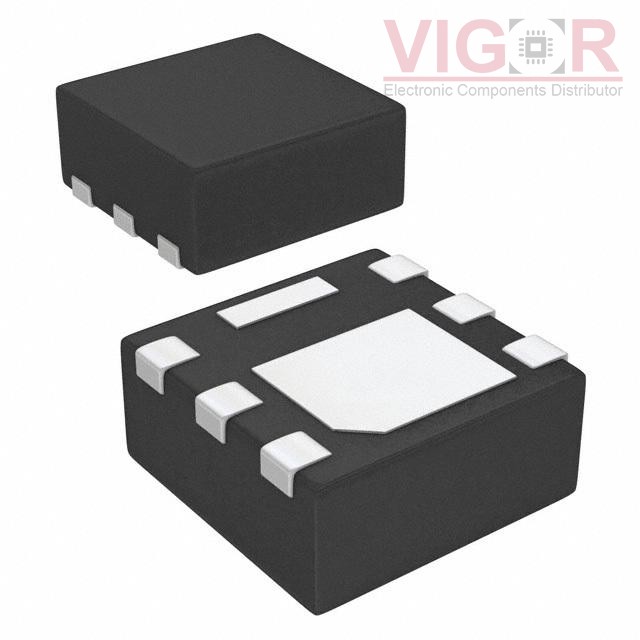

IRLHS2242TRPBF

Part No :: IRLHS2242TRPBF

Manufacturer: IR (Infineon Technologies)

VIGOR # :: 2907606

Description: MOSFET P-CH 20V 7.2A/15A 6PQFN

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IRLHS2242TRPBF PDF

Country of origin: -

Date code: -

IRLHS2242TRPBF Specifications

Type	Description
Series:	HEXFET®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	7.2A (Ta), 15A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	2.5V, 4.5V
Rds On (Max) @ Id, Vgs:	31mOhm @ 8.5A, 4.5V
Vgs(th) (Max) @ Id:	1.1V @ 10µA
Gate Charge (Qg) (Max) @ Vgs:	12 nC @ 10 V
Vgs (Max):	±12V
Input Capacitance (Ciss) (Max) @ Vds:	877 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	2.1W (Ta), 9.6W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	6-PQFN (2x2)
Package / Case:	6-PowerVDFN
