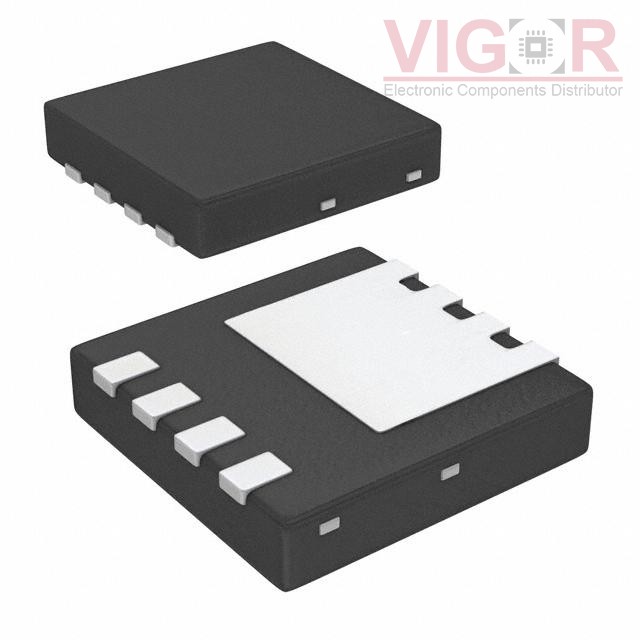

FDMC86160ET100

Part No :: FDMC86160ET100

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 100V 9A/43A POWER33

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FDMC86160ET100 PDF

Availability: 2118 pieces

Current price of FDMC86160ET100 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMC86160ET100 Specifications

Type	Description
Series:	PowerTrench®
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	9A (Ta), 43A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	6V, 10V
Rds On (Max) @ Id, Vgs:	14mOhm @ 9A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	22 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1290 pF @ 50 V
FET Feature:	-
Power Dissipation (Max):	2.8W (Ta), 65W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	Power33
Package / Case:	8-PowerWDFN
