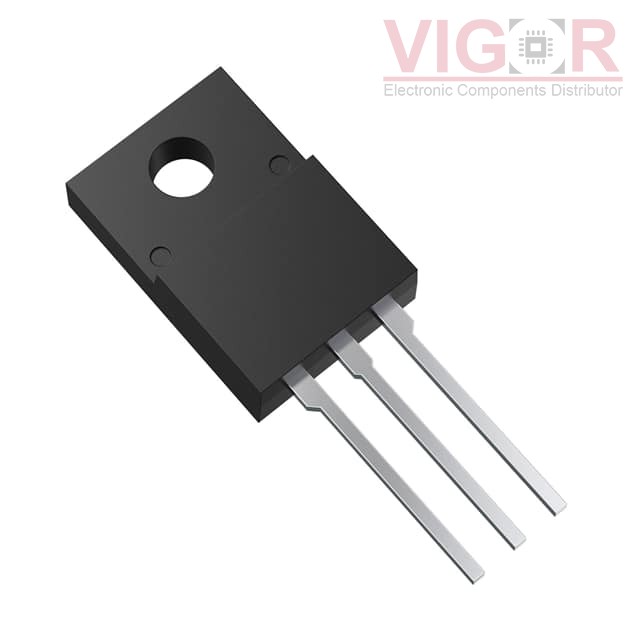

TK090A65Z,S4X

Part No :: TK090A65Z,S4X

Manufacturer: Toshiba Electronic Devices and Storage Corporation

Description: MOSFET N-CH 650V 30A TO220SIS

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TK090A65Z,S4X PDF

Availability: 300 pieces

Current price of TK090A65Z,S4X is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TK090A65Z,S4X Specifications

Type	Description
Series:	DTMOSVI
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	650 V
Current - Continuous Drain (Id) @ 25°C:	30A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	90mOhm @ 15A, 10V
Vgs(th) (Max) @ Id:	4V @ 1.27mA
Gate Charge (Qg) (Max) @ Vgs:	47 nC @ 10 V
Vgs (Max):	±30V
Input Capacitance (Ciss) (Max) @ Vds:	2780 pF @ 300 V
FET Feature:	-
Power Dissipation (Max):	45W (Tc)
Operating Temperature:	150°C
Mounting Type:	Through Hole
Supplier Device Package:	TO-220SIS
Package / Case:	TO-220-3 Full Pack

Please confirm the specifications of the products when ordering.
