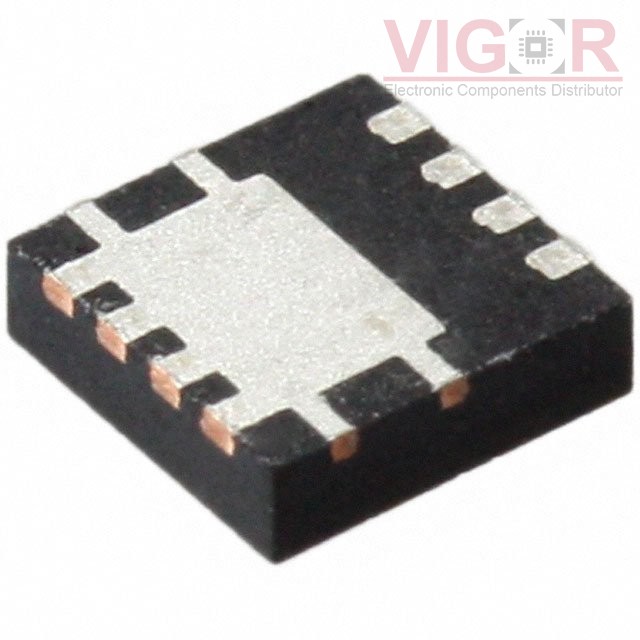

FDMC2514SDC

Part No :: FDMC2514SDC

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: MOSFET N-CH 25V 24A/40A DLCOOL33

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: FDMC2514SDC PDF

Availability: 0 pieces

Current price of FDMC2514SDC is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

FDMC2514SDC Specifications

Type	Description
Series:	Dual Cool™, PowerTrench®, SyncFET™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Obsolete
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	25 V
Current - Continuous Drain (Id) @ 25°C:	24A (Ta), 40A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	3.5mOhm @ 22.5A, 10V
Vgs(th) (Max) @ Id:	3V @ 1mA
Gate Charge (Qg) (Max) @ Vgs:	44 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	2705 pF @ 13 V
FET Feature:	-
Power Dissipation (Max):	3W (Ta), 60W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	Dual Cool ™ 33
Package / Case:	8-PowerTDFN
