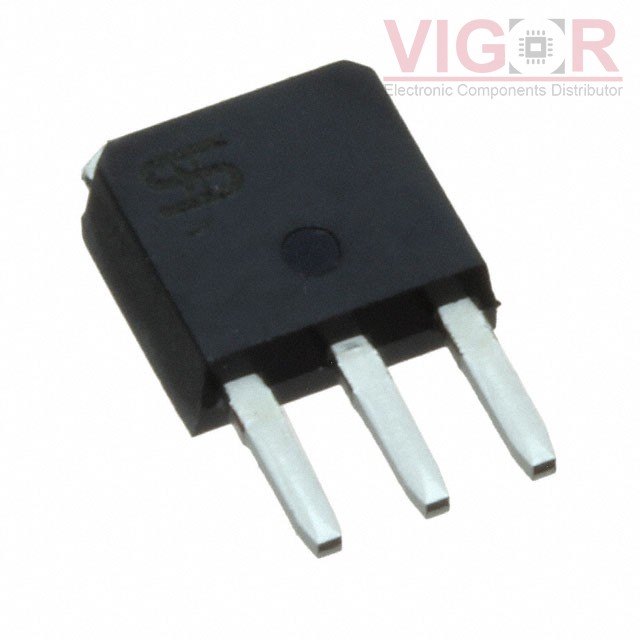

TSM480P06CH X0G

Part No :: TSM480P06CH X0G

Manufacturer: TSC (Taiwan Semiconductor)

Description: MOSFET P-CHANNEL 60V 20A TO251

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: TSM480P06CH X0G PDF

Availability: 11732 pieces

Current price of TSM480P06CH X0G is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

TSM480P06CH X0G Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	20A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	48mOhm @ 8A, 10V
Vgs(th) (Max) @ Id:	2.2V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	22.4 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	1250 pF @ 30 V
FET Feature:	-
Power Dissipation (Max):	66W (Tc)
Operating Temperature:	-50°C ~ 150°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-251 (IPAK)
Package / Case:	TO-251-3 Stub Leads, IPak

Please confirm the specifications of the products when ordering.
