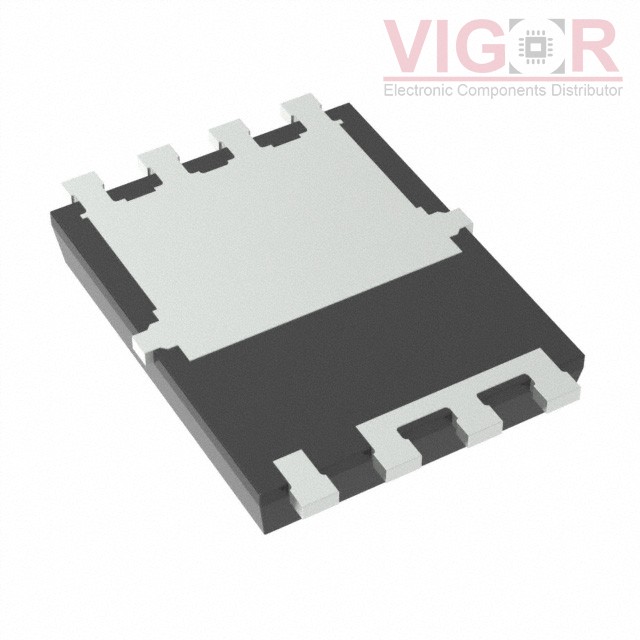

IAUC120N04S6L008ATMA1

Part No :: IAUC120N04S6L008ATMA1

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 40V 120A 8TDSON-33

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IAUC120N04S6L008ATMA1 PDF

Availability: 3448 pieces

Current price of IAUC120N04S6L008ATMA1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IAUC120N04S6L008ATMA1 Specifications

Type	Description
Series:	Automotive, AEC-Q101, OptiMOS™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	40 V
Current - Continuous Drain (Id) @ 25°C:	120A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	0.8mOhm @ 60A, 10V
Vgs(th) (Max) @ Id:	2V @ 90µA
Gate Charge (Qg) (Max) @ Vgs:	140 nC @ 10 V
Vgs (Max):	±16V
Input Capacitance (Ciss) (Max) @ Vds:	7910 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	150W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PG-TDSON-8-33
Package / Case:	8-PowerTDFN

Please confirm the specifications of the products when ordering.
