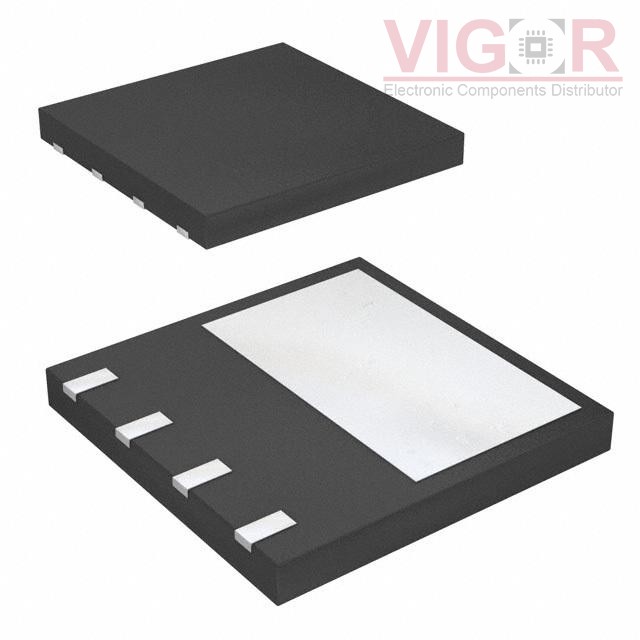

STL24N60DM2

Part No :: STL24N60DM2

Manufacturer: STMicroelectronics

Description: MOSFET N-CH 600V 15A PWRFLAT HV

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: STL24N60DM2 PDF

Availability: 15000 pieces

Current price of STL24N60DM2 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

STL24N60DM2 Specifications

Type	Description
Series:	MDmesh™ DM2
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	600 V
Current - Continuous Drain (Id) @ 25°C:	15A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	220mOhm @ 9A, 10V
Vgs(th) (Max) @ Id:	5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	29 nC @ 10 V
Vgs (Max):	±25V
Input Capacitance (Ciss) (Max) @ Vds:	1055 pF @ 100 V
FET Feature:	-
Power Dissipation (Max):	125W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PowerFlat™ (8x8) HV
Package / Case:	8-PowerVDFN
