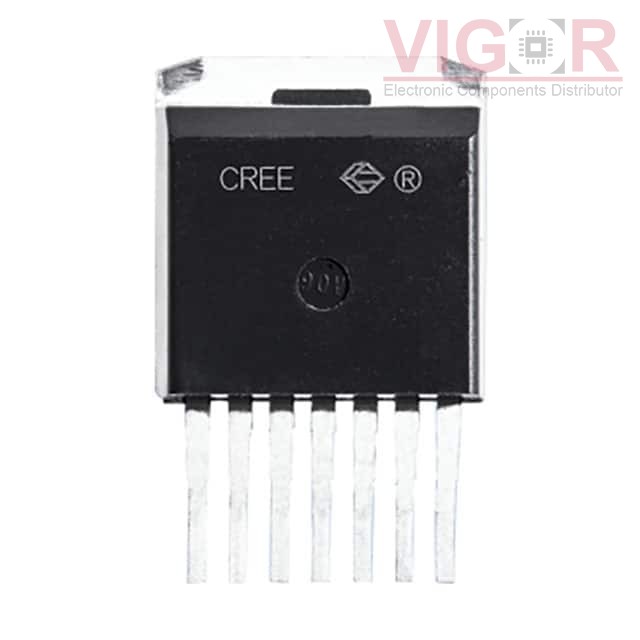

E3M0120090J

Part No :: E3M0120090J

Manufacturer: Wolfspeed - a Cree company

Description: 900V 120M AUTOMOTIVE SIC MOSFET

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: E3M0120090J PDF

Availability: 0 pieces

Current price of E3M0120090J is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

E3M0120090J Specifications

Type	Description
Series:	E-Series, Automotive
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):	900 V
Current - Continuous Drain (Id) @ 25°C:	22A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	15V
Rds On (Max) @ Id, Vgs:	155mOhm @ 15A, 15V
Vgs(th) (Max) @ Id:	3.5V @ 3mA
Gate Charge (Qg) (Max) @ Vgs:	18 nC @ 15 V
Vgs (Max):	+15V, -4V
Input Capacitance (Ciss) (Max) @ Vds:	414 pF @ 600 V
FET Feature:	-
Power Dissipation (Max):	83W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	TO-263-7
Package / Case:	TO-263-8, D²Pak (7 Leads + Tab), TO-263CA
