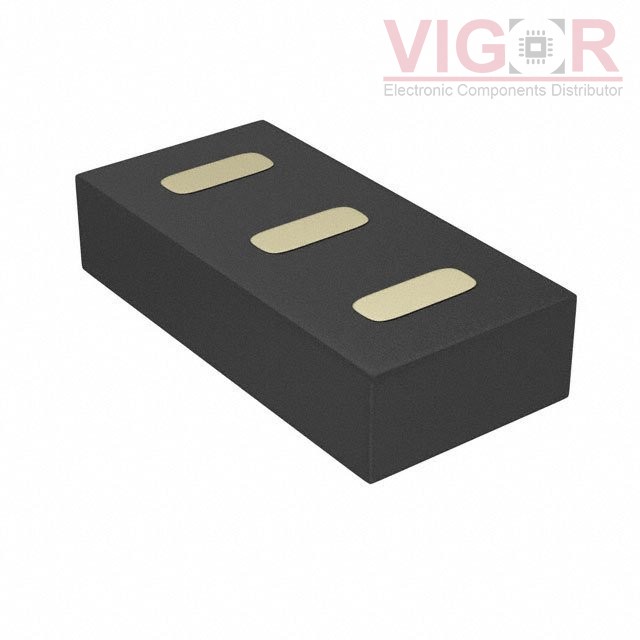

CSD25485F5T

Part No :: CSD25485F5T

Manufacturer: Texas Instruments

Description: MOSFET P-CH 20V 5.3A 3PICOSTAR

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: CSD25485F5T PDF

Availability: 0 pieces

Current price of CSD25485F5T is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CSD25485F5T Specifications

Type	Description
Series:	FemtoFET™
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	P-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	20 V
Current - Continuous Drain (Id) @ 25°C:	5.3A (Ta)
Drive Voltage (Max Rds On, Min Rds On):	1.8V, 8V
Rds On (Max) @ Id, Vgs:	35mOhm @ 900mA, 8V
Vgs(th) (Max) @ Id:	1.3V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	3.5 nC @ 4.5 V
Vgs (Max):	-12V
Input Capacitance (Ciss) (Max) @ Vds:	533 pF @ 10 V
FET Feature:	-
Power Dissipation (Max):	1.4W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	3-PICOSTAR
Package / Case:	3-SMD, No Lead

Please confirm the specifications of the products when ordering.
