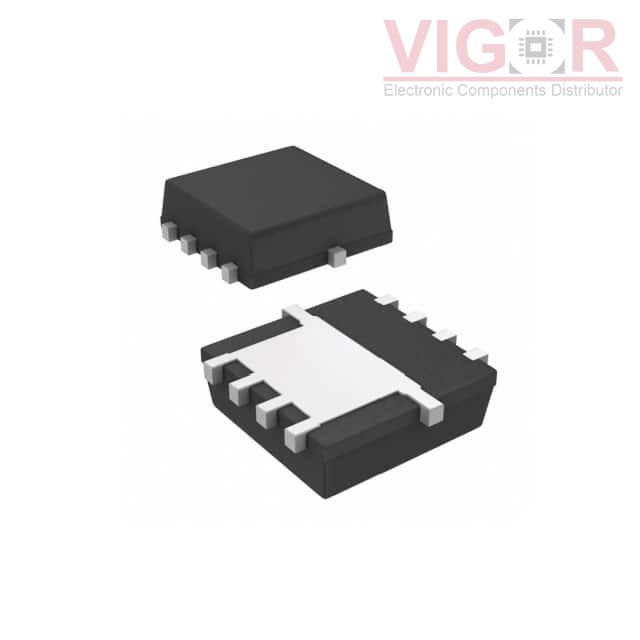

SIDR626LDP-T1-RE3

Part No :: SIDR626LDP-T1-RE3

Manufacturer: Vishay / Siliconix

Description: MOSFET N-CH 60V 45.6A/2.4A PPAK

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: SIDR626LDP-T1-RE3 PDF

Availability: 6000 pieces

Current price of SIDR626LDP-T1-RE3 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

SIDR626LDP-T1-RE3 Specifications

Type	Description
Series:	TrenchFET® Gen IV
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	60 V
Current - Continuous Drain (Id) @ 25°C:	45.6A (Ta), 2.4A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	4.5V, 10V
Rds On (Max) @ Id, Vgs:	1.5mOhm @ 20A, 10V
Vgs(th) (Max) @ Id:	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	135 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	5900 pF @ 30 V
FET Feature:	-
Power Dissipation (Max):	6.25W (Ta), 125W (Tc)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	PowerPAK® SO-8DC
Package / Case:	PowerPAK® SO-8

Please confirm the specifications of the products when ordering.
