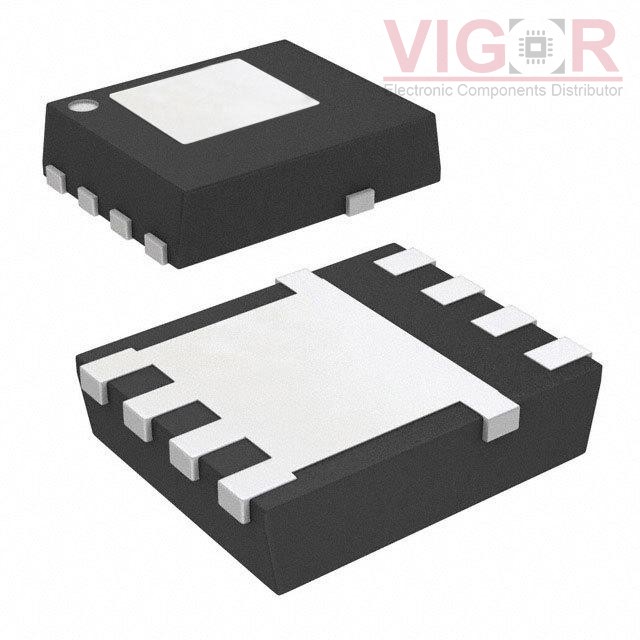

CSD16408Q5C

Part No :: CSD16408Q5C

Manufacturer: VIGOR

Description: MOSFET N-CH 25V 22A/113A 8VSON

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: CSD16408Q5C PDF

Availability: 12500 pieces

Current price of CSD16408Q5C is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

CSD16408Q5C Specifications

Type	Description
Series:	NexFET™
Package:	Bulk
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	25 V
Current - Continuous Drain (Id) @ 25°C:	22A (Ta), 113A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	-
Rds On (Max) @ Id, Vgs:	4.5mOhm @ 25A, 10V
Vgs(th) (Max) @ Id:	2.1V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	8.9 nC @ 4.5 V
Vgs (Max):	+16V, -12V
Input Capacitance (Ciss) (Max) @ Vds:	1300 pF @ 12.5 V
FET Feature:	-
Power Dissipation (Max):	3.1W (Ta)
Operating Temperature:	-55°C ~ 150°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	8-VSON-CLIP (5x6)
Package / Case:	8-PowerTDFN
