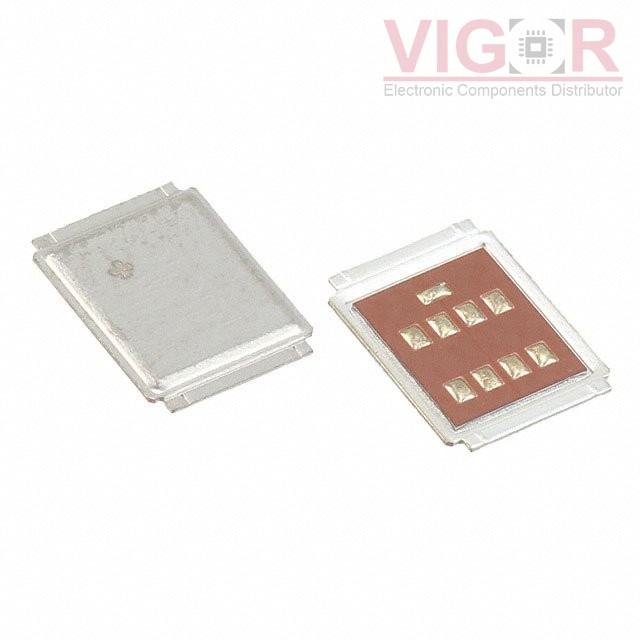

IRF7769L1TRPBF

Part No :: IRF7769L1TRPBF

Manufacturer: IR (Infineon Technologies)

Description: MOSFET N-CH 100V 20A DIRECTFET

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: IRF7769L1TRPBF PDF

Availability: 5477 pieces

Current price of IRF7769L1TRPBF is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

IRF7769L1TRPBF Specifications

Type	Description
Series:	-
Package:	Tape & Reel (TR)Cut Tape (CT)
Part Status:	Active
FET Type:	N-Channel
Technology:	MOSFET (Metal Oxide)
Drain to Source Voltage (Vdss):	100 V
Current - Continuous Drain (Id) @ 25°C:	20A (Ta), 124A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	10V
Rds On (Max) @ Id, Vgs:	3.5mOhm @ 74A, 10V
Vgs(th) (Max) @ Id:	4V @ 250µA
Gate Charge (Qg) (Max) @ Vgs:	300 nC @ 10 V
Vgs (Max):	±20V
Input Capacitance (Ciss) (Max) @ Vds:	11560 pF @ 25 V
FET Feature:	-
Power Dissipation (Max):	3.3W (Ta), 125W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Surface Mount
Supplier Device Package:	DIRECTFET L8
Package / Case:	DirectFET™ Isometric L8
