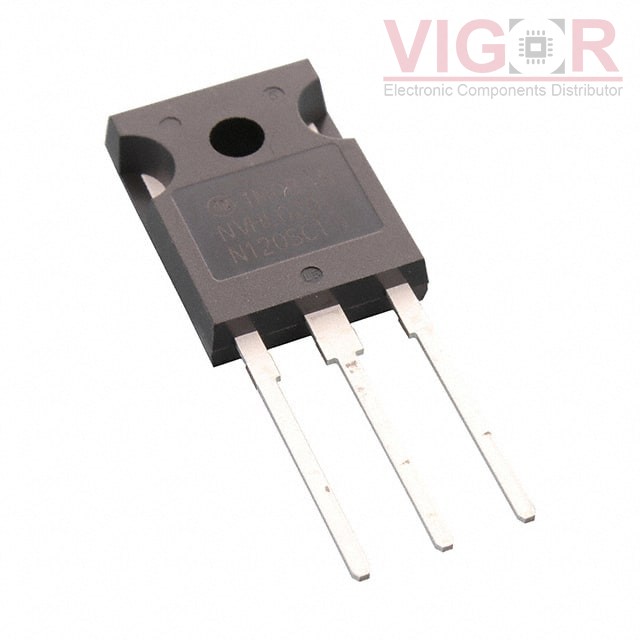

NVHL020N120SC1

Part No :: NVHL020N120SC1

Manufacturer: Sanyo Semiconductor/ON Semiconductor

Description: SICFET N-CH 1200V 103A TO247-3

Catalog: Transistors - FETs, MOSFETs - Single

DataSheet: NVHL020N120SC1 PDF

Availability: 9000 pieces

Current price of NVHL020N120SC1 is for reference only, if you want to get best price, please submit a inquiry or direct email to our sales team sales@vigor.vom.SG

NVHL020N120SC1 Specifications

Type	Description
Series:	-
Package:	Tube
Part Status:	Active
FET Type:	N-Channel
Technology:	SiCFET (Silicon Carbide)
Drain to Source Voltage (Vdss):	1200 V
Current - Continuous Drain (Id) @ 25°C:	103A (Tc)
Drive Voltage (Max Rds On, Min Rds On):	20V
Rds On (Max) @ Id, Vgs:	28mOhm @ 60A, 20V
Vgs(th) (Max) @ Id:	4.3V @ 20mA
Gate Charge (Qg) (Max) @ Vgs:	203 nC @ 20 V
Vgs (Max):	+25V, -15V
Input Capacitance (Ciss) (Max) @ Vds:	2890 pF @ 800 V
FET Feature:	-
Power Dissipation (Max):	535W (Tc)
Operating Temperature:	-55°C ~ 175°C (TJ)
Mounting Type:	Through Hole
Supplier Device Package:	TO-247-3
Package / Case:	TO-247-3 Variant

Please confirm the specifications of the products when ordering.
